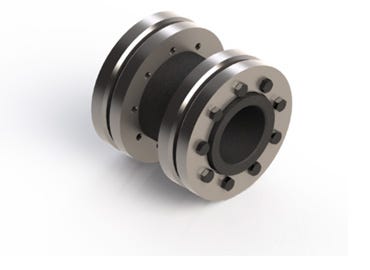

shaft coupling

shaft coupling is the safe and backless free connection that connects the drive shaft and drive shaft in order to transmit torque. The external clamping systems generate a backlash-free connection by pressing the connecting sleeve onto the shaft ends.

WORKING PRINCIPLE:-

Connect the hub solidly to shafts, using a keyless mechanical interference fit, to transmit torque or to withstand axial thrust. This mechanical interference fit is based on wedge base friction theory.

By tightening screws clamp force is generated and due to taper geometry, the clamp force transmits force to another member in a radial direction which induced contact pressure to the hub.

This pressure expands the Shaft Locking Device to eliminate the gap between the hub and the shaft. The Shaft Locking Device generates friction bonding between the Shaft Locking Device and the shaft/hub to create a zero backlash connection.

Due to Interference between two bonded parts at the shaft and hub, the torque can be transmitted from the shaft to the hub through the Shaft hub assembly.
Shaft Hub Connection is easily releasable to remove the mechanical interference fit.

Shaft Locking Devices expand to fill the gap between the shaft and hub, allowing for easy installation and removal, saving time over traditional interference fit techniques. The contact pressures created using a Shaft Locking Device are greater than traditional interference fit pressures, allowing for more torque to be transmitted or shorter hubs to be used.

The easy installation also allows the hub to be positioned more accurately on the shaft and can facilitate the angular timing of the hub.

Types of shaft coupling :-

1. N 500:-

N 500

2. NC 4071 :-

NC 4071

3. NC 4091 :-

NC 4091

4. N 5571 :-

N 5571

For more Kindly visit our site :- https://nmtgindia.com/keyless-transmission-elements/shaft-coupling/#undefined1
